Vacuum Oven (RT ~ +250/300℃)

Model

DHG-6020ZK

DHG-6050ZK

DHG-6090ZK

DHG-6210ZK

DHG-6250ZK

Capacity

20 liters

50 liters

90 liters

210 liters

250 liters

Internal Size WDH

300 ×300 ×275mm

415×370×345mm

450×450×450mm

560×640×600mm

700×600×600mm

Vacuum Pump

No

No

Include

Include

No

Shelf Quantity

1

2

2

3

4

Temp Range

RT+10 ~+250℃

Temp Fluctuation

≤0.5℃

Heating Rate

3~5℃/min

Cooling Rate

Natural Cooling

Timer Range

1 ~ 9999 minutes

Vacuum Degree

-0.1 Mpa (133 Pa)

Vacuum Fluctuation

±10%

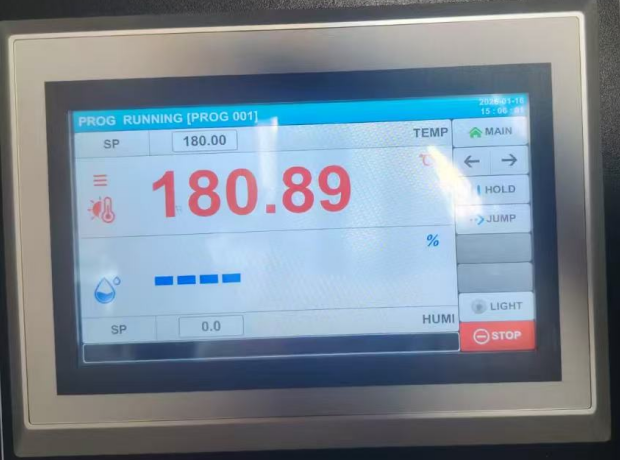

Controller

PID controller

Internal Material

Stainless steel

External Material

Cold rolled steel plate blue electrostatic spraying

Insulation Material

Polyurethane foam (PU foam)

Protection

Over-temperature protection, Over-pressure protection, Power phases protection.

Cooling Way

Air cooling

Sensor

Temperature: PT100

Power Supply

220 ~ 240V, 50Hz, 1-phase   or   380 ~ 415V, 50Hz, 3-phases

Warranty

1 year

Standards

Observation window×1, Observation light×1, User manual×1
