Introduction:
The low content of ozone in the atmosphere is the main factor causing rubber cracking. The Ozone Aging Test Chamber simulates and strengthens the ozone conditions in the atmosphere, studies the action law of ozone on rubber, quickly identifies and evaluates the ozone aging resistance performance of rubber and the protective effect of ozone agents, and takes effective anti-aging measures to improve the service life of rubber products.
Model | CY-100L | CY-225L | CY-500L | CY-1000L |
Capacity | 100 liters | 225 liters | 500 liters | 1000 liters |
Internal Size WDH | 450 ×450 ×500mm | 500 ×600 ×750mm | 800 ×700 ×900mm | 1000 ×1000 ×1000mm |
Test Mode | Dynamic and Static |
Temp Range | RT+10 ~+60℃ |
Temp Fluctuation | ≤0.5℃ |
Temp Uniformity | ≤2.0℃ |
Heating Rate | 2 ~3℃/min (no load) |
Cooling Rate | 0.7 ~ 1.0℃/min (no load) |
Ozone Concentration | 0 pphm ~ 500 pphm (200 ~ 300mg/hour) |
Ozone Read Resolution | ≤±10% |

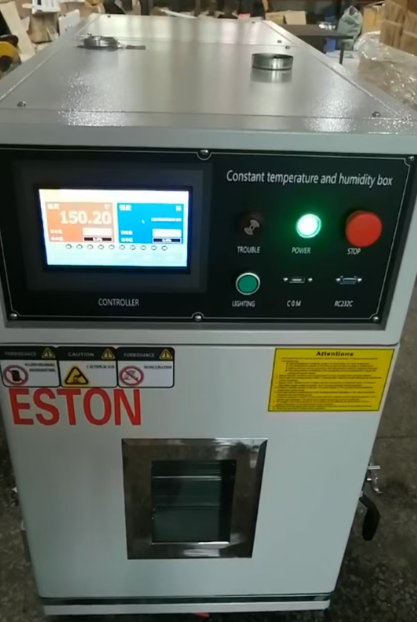

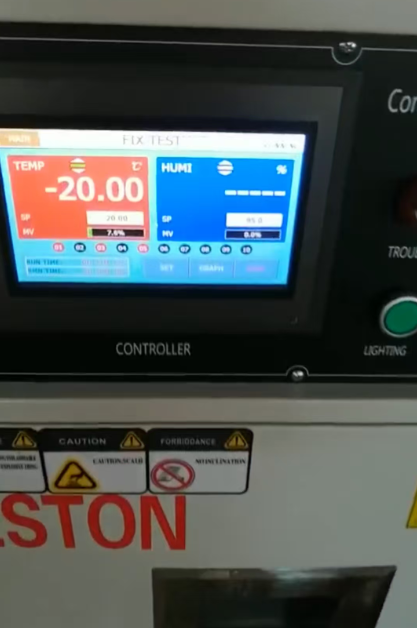

Controller | 7.0 inch program touch screen controller, RS232/485 port, USB data port + English computer software |

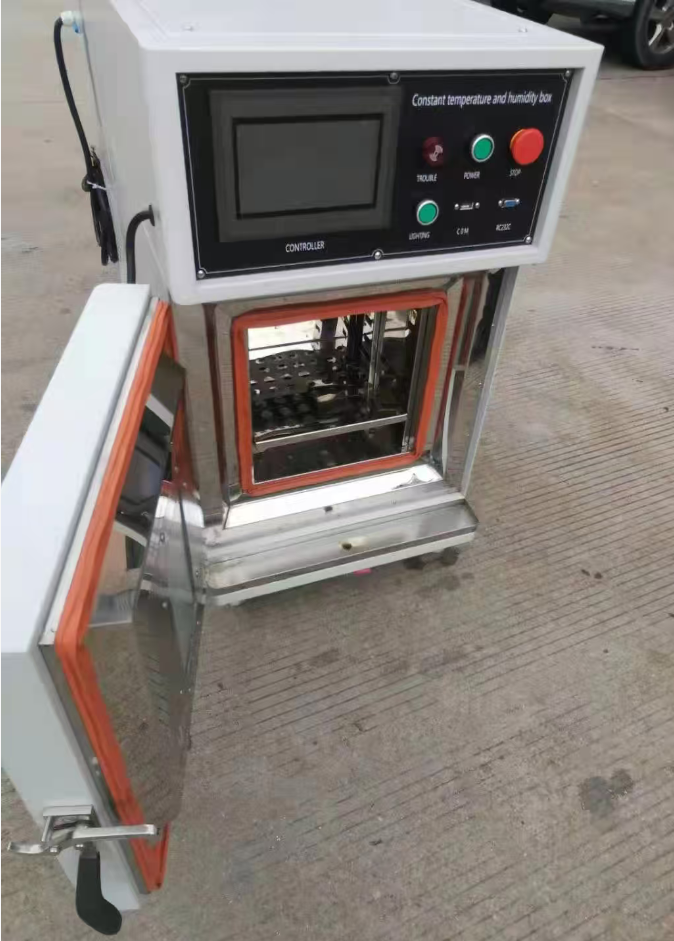

Internal Material | SUS304 mirror stainless steel |
External Material | Cold rolled steel plate white electrostatic spraying |
Insulation Material | Polyurethane foam (PU foam) |
Protection | Over-temperature protection, Over-temperature of compressor protection, Power phases protection. |
Cooling Way | Air cooling |
Sensor | Temperature: PT100 |
Power Supply | 220 ~ 240V, 50Hz, 1-phase or 380 ~ 415V, 50Hz, 3-phases |
Warranty | 1 year |
Standards | Rotational Shelf×1, Observation window×1, Observation light×1, Wheel caster×4, User manual×1, Controller manual×1, 100mm test hole×1 |
